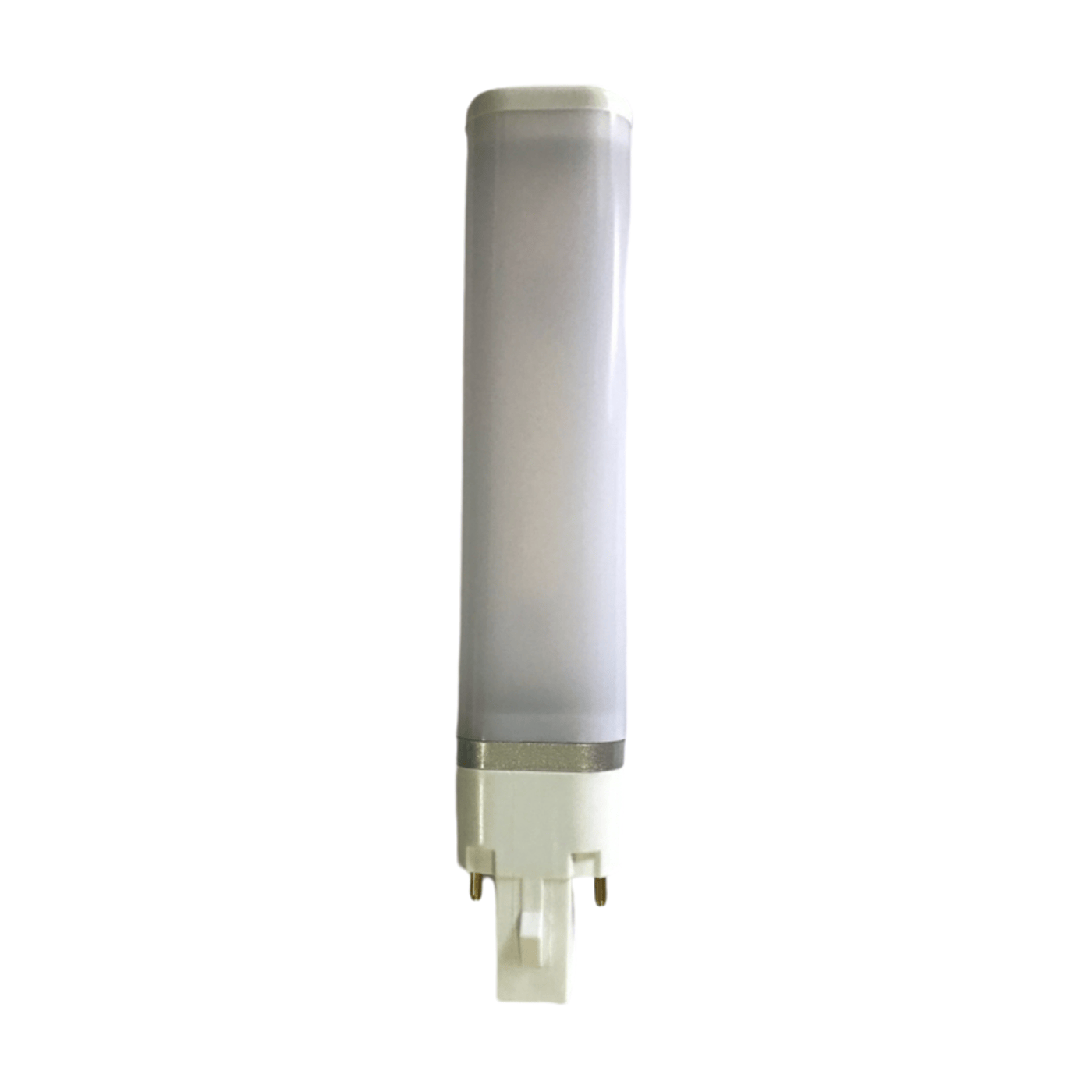

LED PLS 2PIN (G23) 5W, 8W, 10W
LED equivalents to the former CFL PLS Lamp range. To be wired directly to lamp, Voltage is 85-265VAC. 2PIN (G23) Base. 120° Beam.
LED equivalents to the former Compact Fluorescent Lamp (CFL) range. To be wired directly to the lamp, voltage is 85-265VAC.
In former times, Branded versions of these lamps were known in the trade as PL-S, Biax-S, Lynx-S, Dulux-S and Ralux-S. CFL lamps were recognised as being very energy efficient and had a rated average life time of between 8000-15000 hours. LED versions offer significantly more than this making them even more efficient and unlike CFL lamps they require no warm up time, because they are instant switch on. Perhaps their biggest advantage is the fact they are about half the power of CFL lamps, it’s a massive saving with the cost of electric, and who will not want to enjoy that.
The LED lamps are hard wired directly to the mains electric supply. Care should be taken if replacing old CFL lamps over to these LED ones. They should be disconnected from the old CFL ballast (which is then redundant) and hard wired correctly to the mains supply (85-265VAC).
There are three sizes in this range and all have the same specification.
Voltage: 85-265VAC 50-60Hz
Lamp base: 2PIN (G23)
Beam: 120°
Lumen depreciation level: LM-80
CRI 83 and PF0.95
LED make: Epistar (High brightness and high quality)
Rated Life. Up to 50,000 hours, depending on usage
Colours: 2700K, 3000K, 4000K, 5000K & 6000K
Finish: Usually Frosted but Clear also available
Material: Extruded aluminium housing, PC cover, for good heat dissipation
Certification: CE, RoHS, UL
Non dimmable
LED PLS 2PIN 5W 500lm. OL135×W30×H17mm (Replaces PLS G23 7W CFL lamps-400lm)
LED PLS 2PIN 8W 700lm. OL167×W30×H17mm (Replaces PLS G23 9W CFL lamps-600lm)
LED PLS 2PIN 10W 900lm. OL233×W30×H17mm (Replaces PLS G23 11W CFL lamps-900lm)
