LED Strip Controller FUT036S DC12-24V 12A
Mi-Boxer LED Strip Controller DC 12-24V 12A. RF2.4GHz. Max control distance 30M. Use with remote control or a Wall Switch.
Mi-Boxer LED Strip Controller DC 12-24V 12A. RF2.4GHz. Max control distance 30M. Use with remote control or Wall Switch.
- IP20
- Input Voltage: DC 12-24V (Use a Non Dimmable LED driver rated either DC12V or DC24V)
- Output control: 1 Channel 12A (12V output is 144W and 24V output is 288W)
- Used to control single colour LED strip
- Dimming operation works from 100%-10%.
- Dms L75×W36×H17mm
- Working Temperature: -20°~+40°C
- Transmitting power: 6dBm
- RF: 2.4GHz (4G). Will not work with 5G (5Ghz) networks.
- Max controlling distance 30M

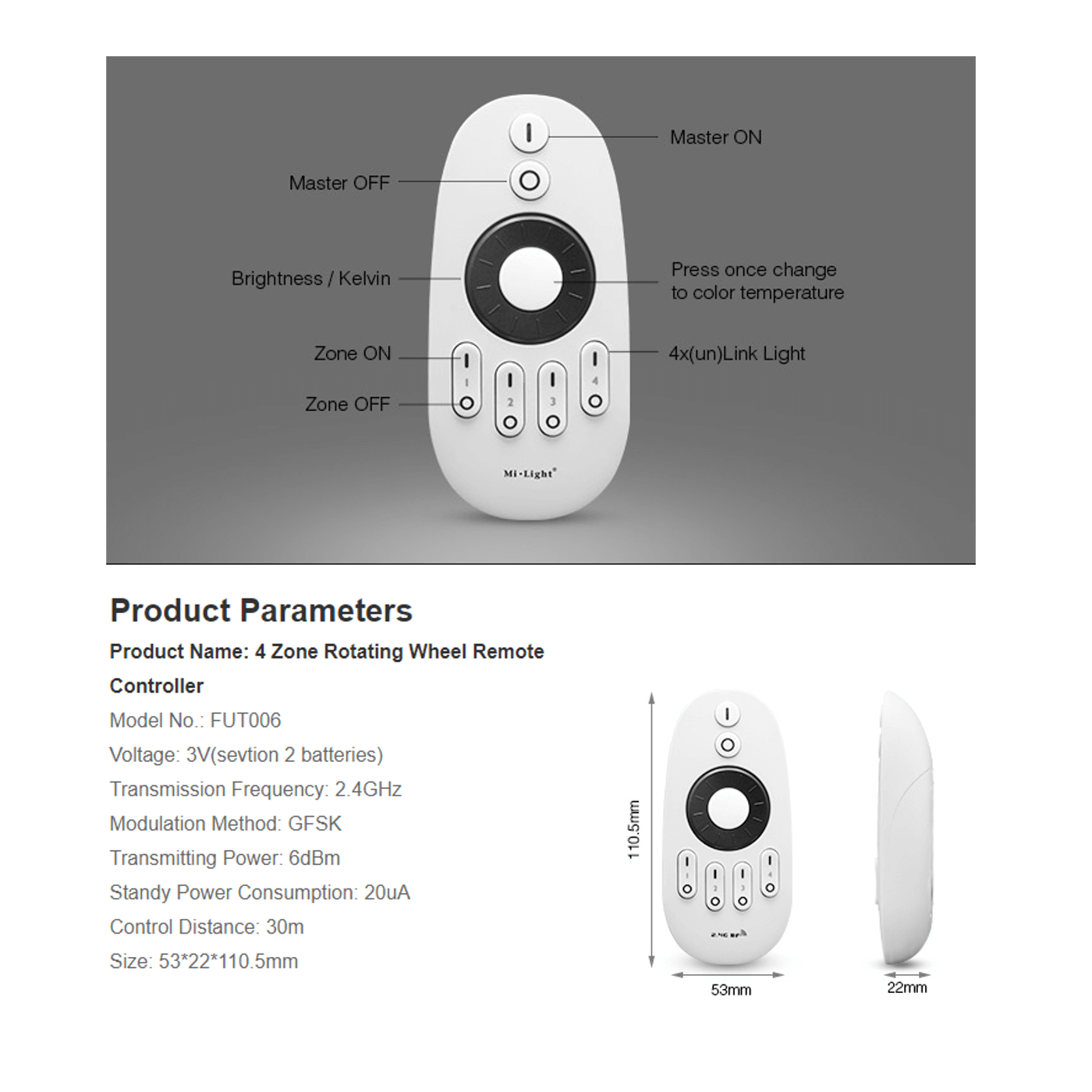

- With optional remote controller or Wall Switch, (see photos for details) both able to operate up to four zones. (FUT006)
How much LED Flexi Strip will it dim ?
Here are the lengths of (single colour) LED strip it will run for our most popular types
12V x 12A = 144W
LED Strip 12VDC 6W per metre, will run up to 24metres (144W÷6W=24 metres)
LED Strip 12VDC 9.6W per metre, will run up to 15metres (144W÷9.6W=15 metres)
(if used with the suggested remote, also over 4-zones)
24V x 12A = 288W
LED Strip 24VDC 4.8W per metre, will run up to 60metres (288W÷4.8W=60 metres)
LED Strip 24VDC 9.6W per metre, will run up to 30metres (288W÷9.6W=30 metres)
(if used with the suggested remote, also over 4-zones)
