JLEDS: MR16 MOD50 3W 5W 7W

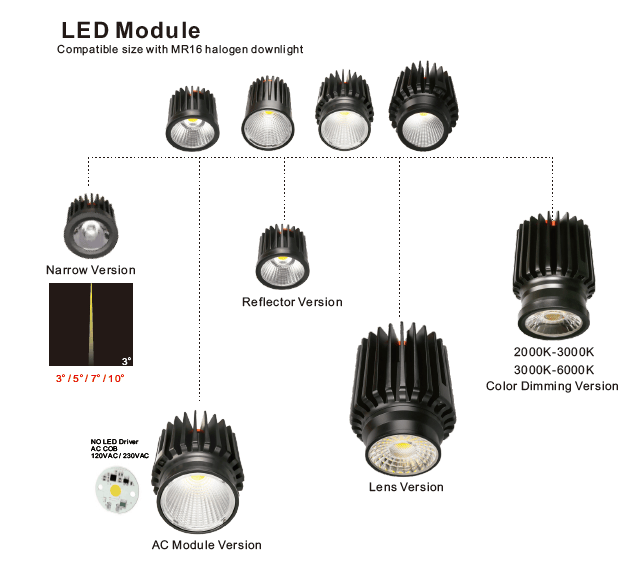

LED Module. MOD50 3W 400lm, MOD50 5W 600lm, MOD 7W 800lm & MOD 7W HO 900lm. Fits inside MR16 (ø50mm) downlights. 2700K, 3000K, 4000K, 5000K & 6500K.
LED Module. MOD50 . All Wattages are the same size and shape. ø50×H50mm with the choice of beam angles, 10°, 15°, 24°, 38° and 60°. Usually made for indoor purposes and rated IP20, and on request it can be upgraded to IP65 for outdoor applications. Choice of CRI, CRI80 or CRI97. UGR19. Choice of Frosted or Anti Glare lens.
Each module supplied with integral LED Driver rated with a 220-240VAC input.
Designed to fit inside our large range of ø50mm (MR16) Downlights available in Round and Square shapes, and in white, black or brushed chrome finishes.
All modules are available in colours 2700K, 3000K, 4000K, 5000K & 6500K.
There are four wattage levels:-
MOD50 3W 400lm. Not dimmable
MOD50 5W 600lm. Triac, 0-10V, or DALI dimmable.
MOD50 7W 800lm. Triac 0-10V, or DALI dimmable.
MOD50 7W HO 900lm. Triac 0-10V, or DALI dimmable.
